ZETA-RS 系列 量產奈米研磨/分散
Netzsch ZETA-RS high-speed circulation mill
The nano mill Zeta® RS is the next development of the worldwide known circulation mill system Zeta® type LMZ. Its field of application starts where the other agitator bead mill system Zeta® ends. The highly efficient centrifugal separation system enables the use of smallest grinding media from a diameter of 30 – 300 µm in reliable continuous operation.
It is specially designed for wet grinding and dispersing processes especially “gentle dispersing” in the nanometer range. Working with the machines is a pleasure due to its easy operationThe agitator bead mill Zeta® RS is equipped with a swiveling grinding unit and lifting device with multiple positions for easy emptying, filling and cleaning and a horizontal working position.
Four sizes with 2 l, 4 l, 10 l, 25 l and 60 l grinding chamber volumePeg grinding system with small length/diameter portionATEX-conform design in ergonomic designHighly efficient dynamic centrifugal separation systemUse of smallest grinding media from 20 to 300 µmIntegrated grinding media collecting tray for loss-free emptyingEasy handling due to swiveling and carriage-type grinding chamberControl of the mill drive and feeding pump via frequency inverterFlow meter to control the product flowPressure control by contact manometerMeasurement of the product inlet and outlet temperature, optionally also available for cooling water temperatureFlow measurement of the chamber cooling.
Grinding chamber design of stainless steel as standard. Wear and corrosion resistant designs for metal free processing are available in the materials NETZSCH-Ceram C / NETZSCH-Ceram N, NETZSCH-Ceram Z, NElast

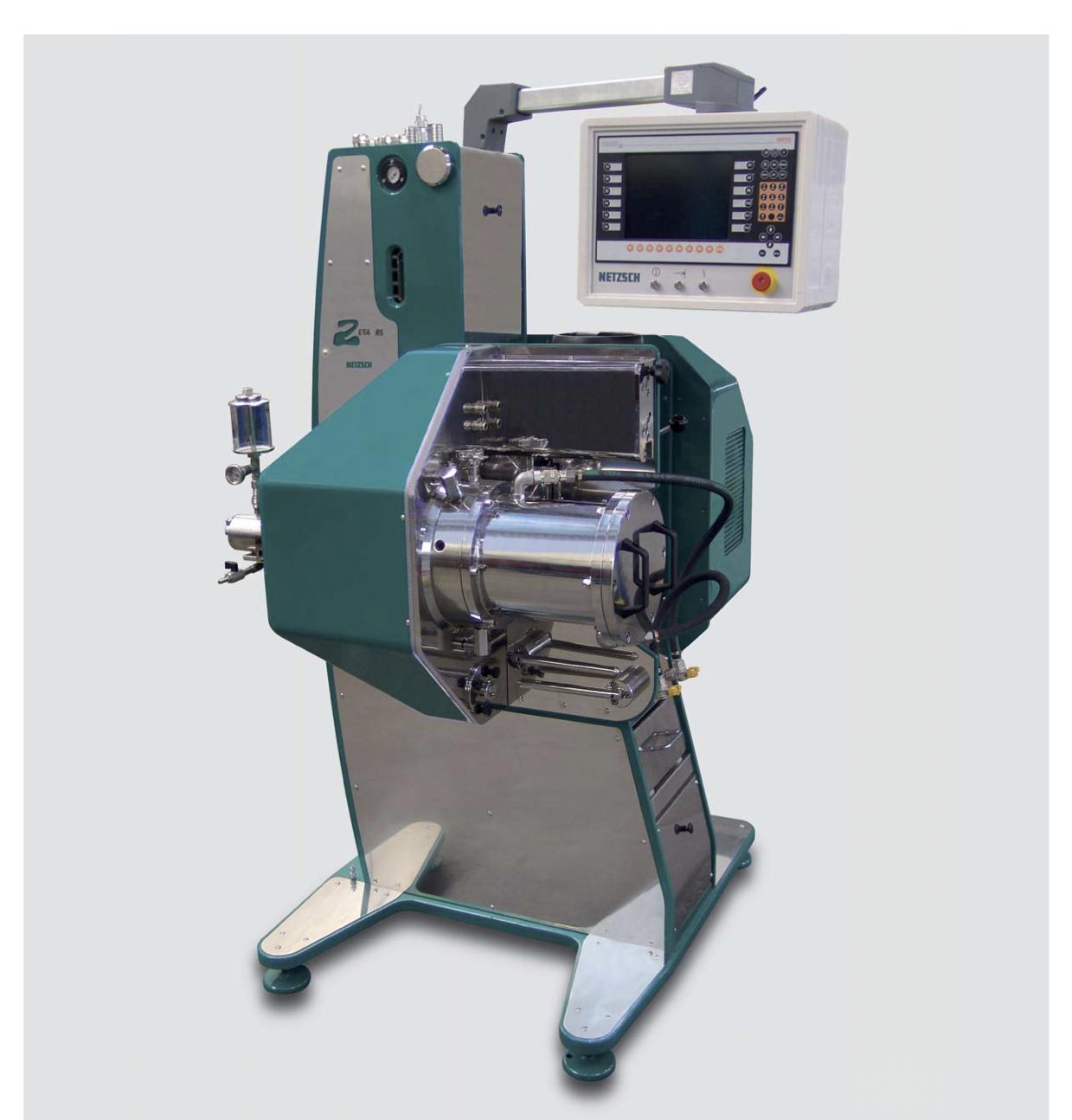

Netzsch Zeta RS 4 （4公升研磨室）旋轉型機台外觀
Netzsch Zeta RS研磨案例分析

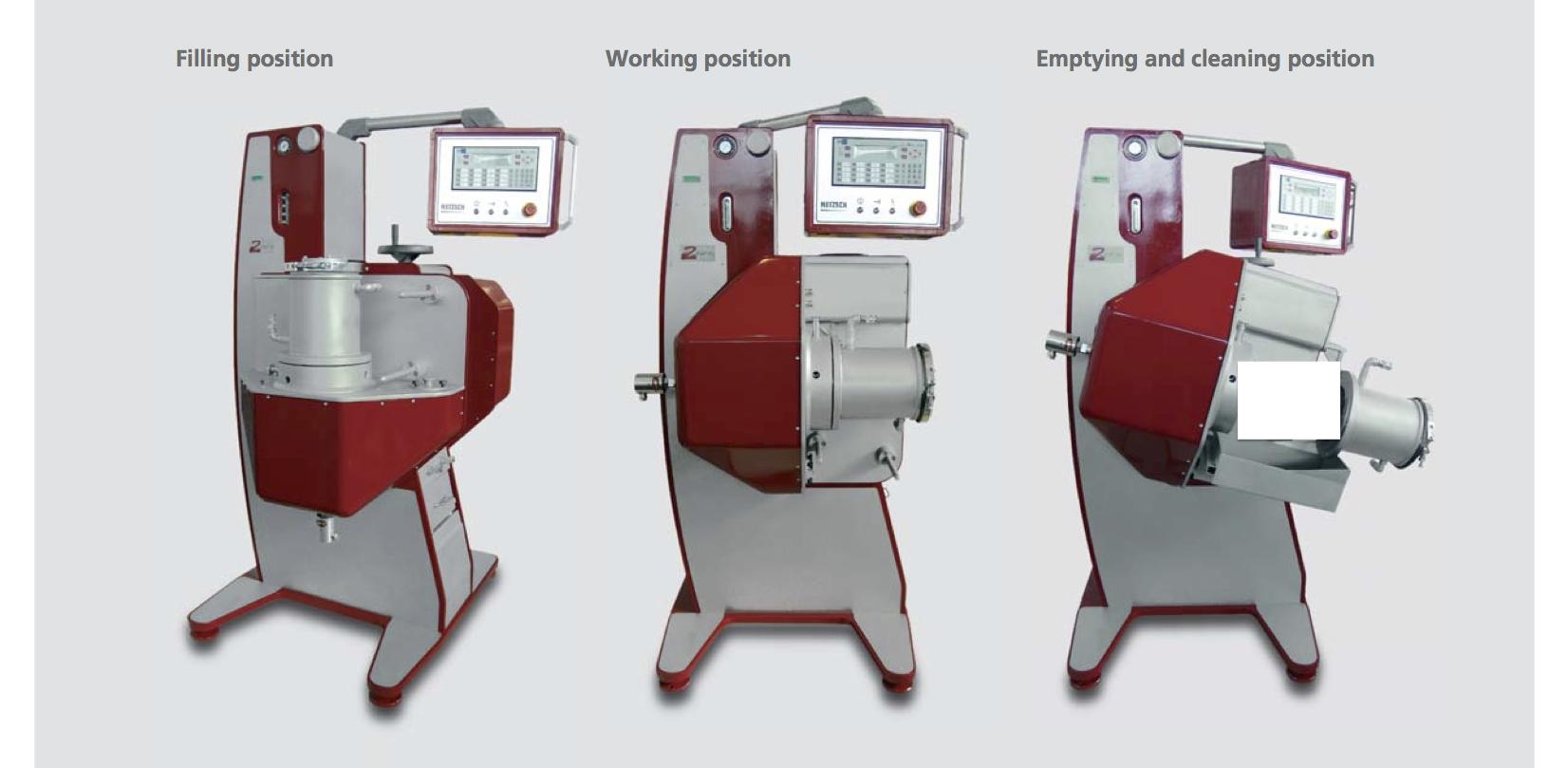

Netzsch Zeta RS 系統 – 旋轉式研磨室設計（清洗、填充、研磨各為不同角度）
Netzsch Zeta RS 25 with separate-driven ODC system
(非旋轉型式搭配分離驅動出料系統)
奈米研磨機介紹：
奈米用循環砂磨機Zeta® RS是級舉世聞名的大流量砂磨機Zeta® LMZ的新一代產品。
與其他砂磨機相比，奈米用循環砂磨機Zeta® RS的用途更加廣泛。
該機型設計新穎，操作簡單，特別適用於細度要求在奈米級範圍的物料濕法研磨和分散。奈米用循環砂磨機Zeta® RS配備有旋轉部件和自動升降系統以便清洗，填料和操作。
•研磨室容積： 2L、4L、10L、25L、60L
•可使用研磨珠尺寸：釔鋯球、玻璃珠、碳鋼珠
•與產品接觸材質：不鏽鋼、鑄鐵、PU、氧化鋯、碳化矽、氮化矽…等
•加工最大起始粒徑：100微米 (平均粒徑)
•特別設計適用於使用0.3mm以下的研磨珠
•水性產品與溶劑型配方都可適用
奈米研磨機技術應用：
•奈米塗料、功能塗料
•奈米陶瓷
•LCD
•噴墨墨水
•顏料生產、顏料制劑
•拋光劑(CMP)
•電容塊、MLCC
