LME / LMK nano grinding/dispersing equipment for mass production

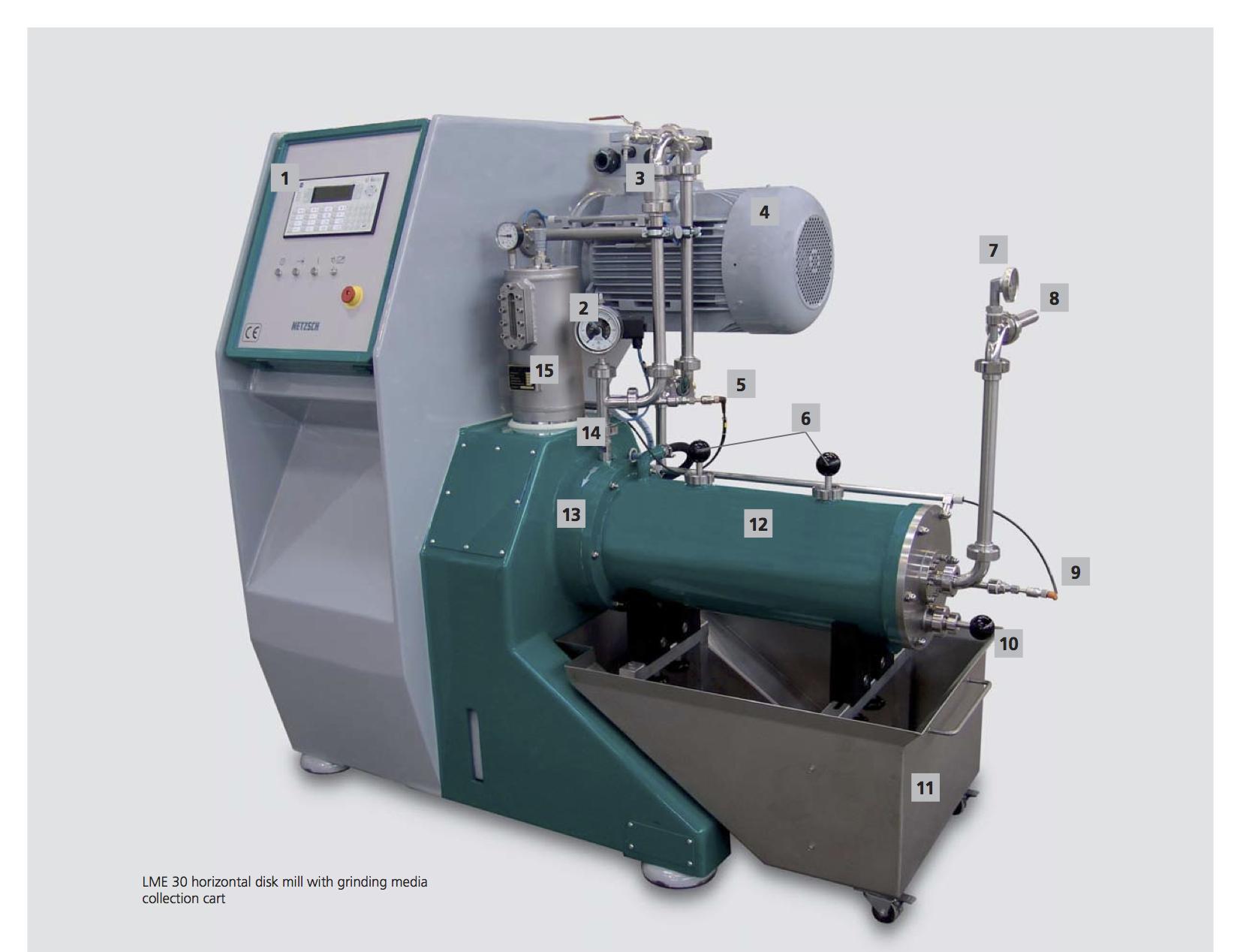

Netzsch LME 30 Disk mill

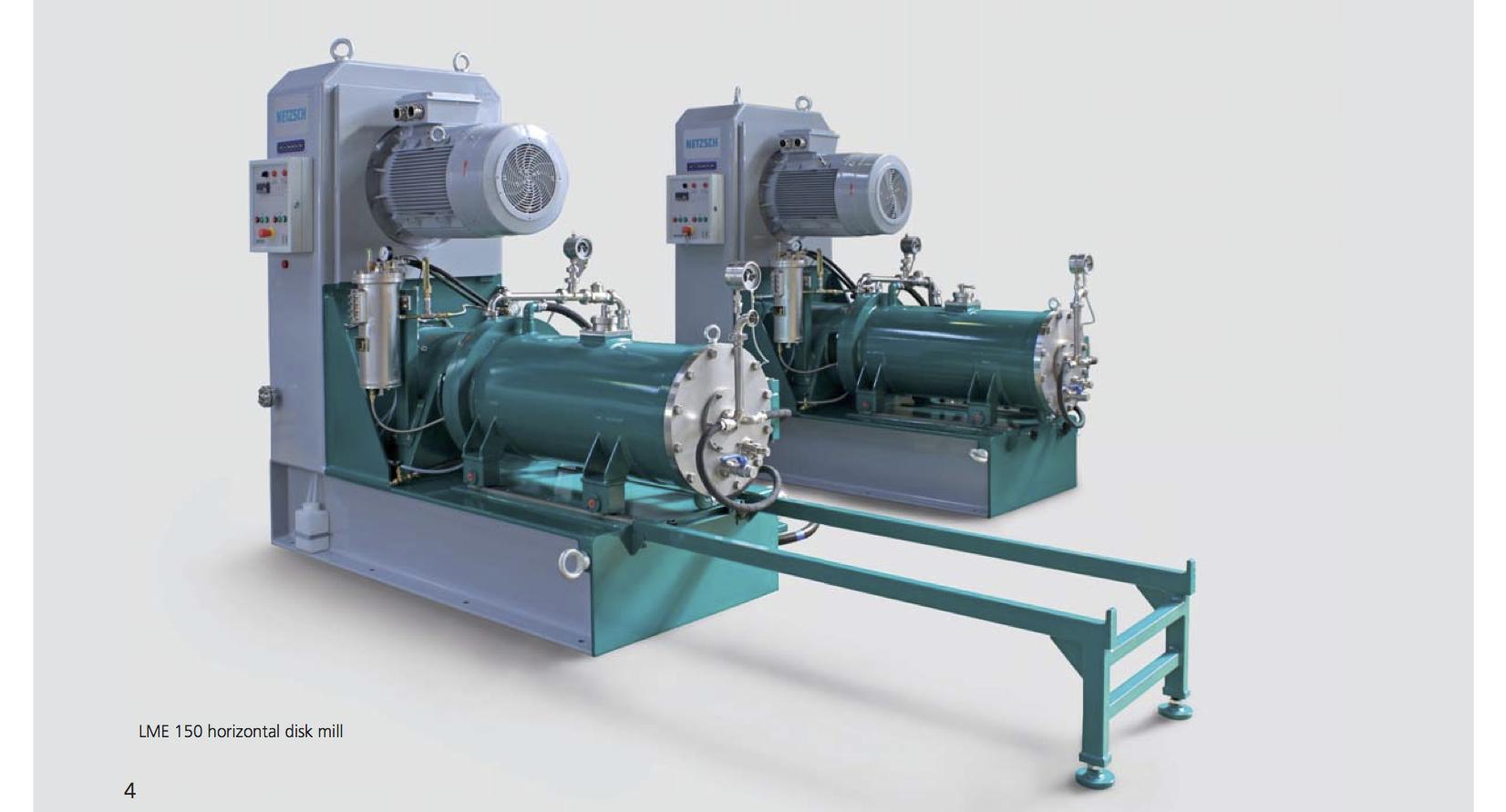

Netzsch LME 150 production disk mill (3000 L batch size)
Netzsch LME 500 (10,000 L batch maximum)
Introduction to the LME/LMK nano mills for mass production:
The horizontal disk mill type LME / LMK has a wide range of applications in production.
The disk agitator shaft activates the grinding media with high intensity through the entire grinding chamber. Highly efficient separation devices are available for separation of product and grinding media. This ensures that the mill is reliably operated with high viscous products as well. Depending on the product-specific requirements, the machine can be designed in different materials (e.g. polyurethane, rubber, ceramics, chilled casting, and wear-resistant steel).
•Narrow grain spectrum to the sub-micron area
•Grinding chamber volume up to 40,000L
•Easy and flexible preparation
•Easy operation
•Continuous grinding process with high energy density
•Reasonably designed grinding chamber
•Abrasion-proof wear parts of different materials
•Integrated classifying separation system
•High productivity
•Grinding media suitable for all particle size
•Small space requirement
•Applicable for both water and solvent products
Options
•Automatic pressure release of the separation system
•Inline cleaning by spraying nozzles
•Visualization of the process parameter
•Automatic control of the grinding process
System TriNex®
•Further development of the worldwide successful grinding system “MoliNex”
•Rapid acceleration of the grinding media through the entire grinding chamber
•High energy input due to large surface
•Active counteracting force of the grinding media to the sweeping force of the product
•Standard material (highly wear resistant steel) and special materials (PU, PE)
LME/LMK Applications:
•Printing ink
•Coating
•Pigment
•Magnetic coating
•Paper coating
•Calcium carbonate
•Titanium dioxide
•Filling
•Food, e.g. cocoa
